Control Panels
Control panel is a central intelligent hub which co-ordinates with the sensors and communicators to monitor your security system. Our unique commercial grade and EN-certified hybrid panels give you the flexibility of connecting both wired and wireless sensors seamlessly.

Expanders
Expanders provide superior design flexibility, increased system options and extend the range of our sensors. Our wired and wireless options are ideal for installations where a custom system is a requirement.

Keypads
Keypads are the interfaces that you use to operate or program the control panel. With a combination of stunning looks and unmatched features, our keypads are the preferred choice for any user.

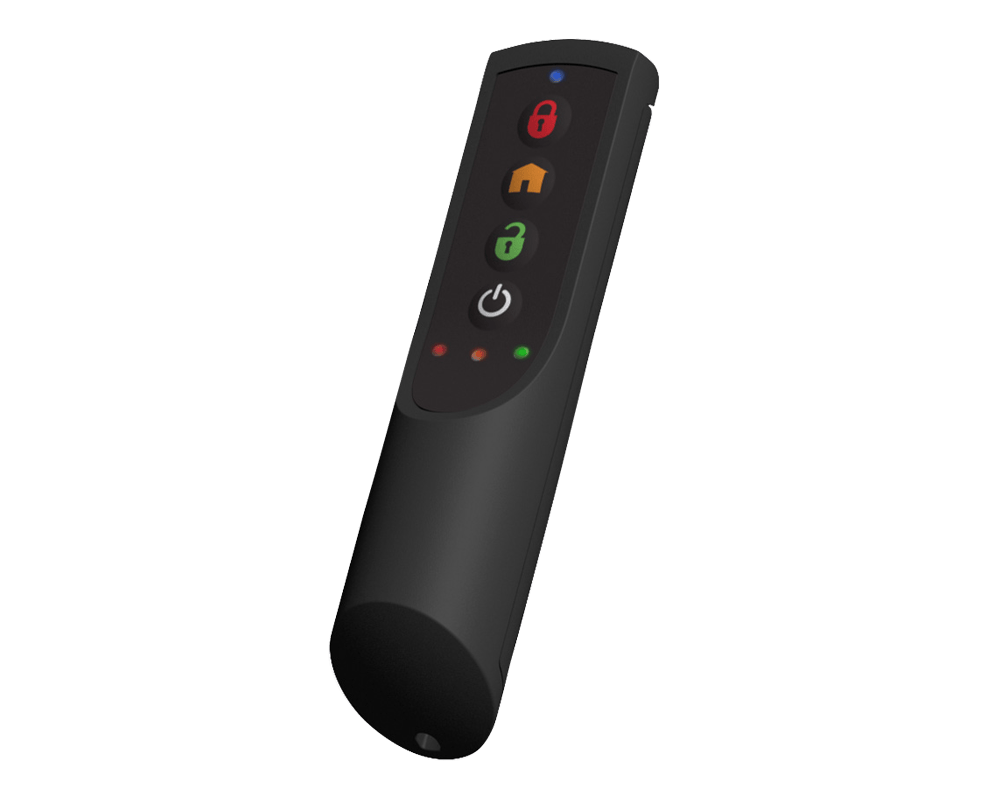

Premier Elite SmartKey
Simple and intuitive to use, this intelligent and elegant wireless keyfob allows users to arm, part arm and disarm their system from anywhere in the vicinity of their property.
Part code: GCC-0012
Control Panels

Elite 24
Part code - CAA-0070

Elite 64-W Live
Part code - GEX-0005

Elite 88
Part code - CAC-0042

Elite 168
Part code - CAD-0044

Elite 640
Part code - CAE-0033
Elite 24 | Elite 64W | Elite 88 | Elite 168 | Elite 640 |
|
---|---|---|---|---|---|
On Board Zones | 8 | 4 | 8 | 8 | 0 |
Expandable Zones up to(Using Keypad & Expander) | 24 | 76 | 88 | 168 | 640 |
Network Port | 1 | 1 | 1 | 2 | 8 |
Keypad Support up to | 2 | 4 | 8 | 16 | 64 |
Support Expander | 2 | 8 | 8 | 16 | 64 |
Output Module | 1 | 2 | 4 | 8 | 64 |
Area | 2 | 4 | 8 | 16 | 64 |
User Code | 25 | 50 | 100 | 200 | 500 |
Event Log | 500 | 500 | 1000 | 2000 | 5000 |
Panel Output | 1 | 2 | 5 | 5 | 5 |
Power Supply | 1.5Amp | 1.5Amp | 2.5Amp | 2.5Amp | 2.5Amp |
Premier Elite Expanders

8XP
Part code - CCB-0036
Wired 8 Zone Expander

8XP-W
Part code - GCD-0003
Wireless 8 Zone Expander

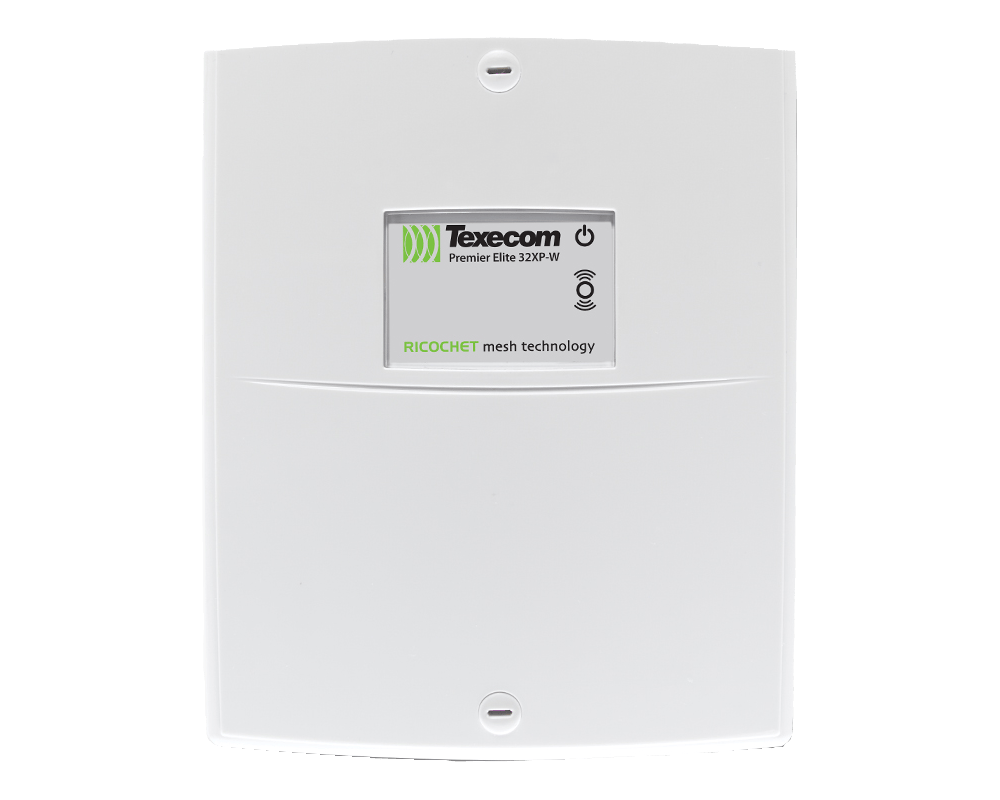

32XP-W
Part code - GCA-0003
Wireless 32 Zone Expander

iXP-W
Part code - GEC-0004
8 Zone Expander for connecting Texecom wireless sensors to any 3rd party control panel

PSU200-XP
Part code - CCJ-0014
Energy efficient 2.5A switch mode power supply with Premier Elite 8XP Expander
Keypads

Premier LCD
Part code - DBA-0165
Wired remote keypad with Green LCD and Iconic Keys

Premier Elite LCDLP
Part code - DBD-0190
Wired remote keypad with blue LCD, iconic keys and built-in proximity tag reader

Premier Elite LCDLP-W
Part code - GCE-0002
Wireless remote keypad with blue LCD, iconic keys and built-in proximity tag reader

Premier Elite Satin Chrome
Part code - DBD-0175
Surface mounted, wired, blue LCD keypad with built-in proximity tag reader

Premier Elite Gunmetal
Part code - DBD-0199 Flush mounted, wired, blue LCD keypad with built-in proximity tag reader
For more information related to the products like datasheets, installation manuals, end user guides and specifications, please visit our global website.
